1、 Machine Introduction:
The SD3050G model is a large aluminum profile high-speed and high-precision drilling and tapping machining center specially designed for customers; The motion mode is to move the Y-axis workbench forward and backward, the X-axis machine head moves left and right, and the Z-axis spindle moves up and down. The Taiwan Shengjie 16 bit UFO style knife magazine has a tool changing speed of 2 seconds, greatly improving production efficiency; Adopting the Huashu drilling and attacking center system; Body cast iron structure& Nbsp; The three-axis adopts imported linear motors, Taiwan Shangyin precision linear guide rails, advanced spindle refrigeration system, automatic lubrication system, and coolant circulation water spraying system, ensuring higher processing accuracy, speed, and stability;; Especially suitable for precision engraving, milling, drilling, and tapping of various types of steel, copper, aluminum, acrylic, plastic and other parts< Br/>
&Nbsp< Br/>
&Nbsp;
&Nbsp< Br/>

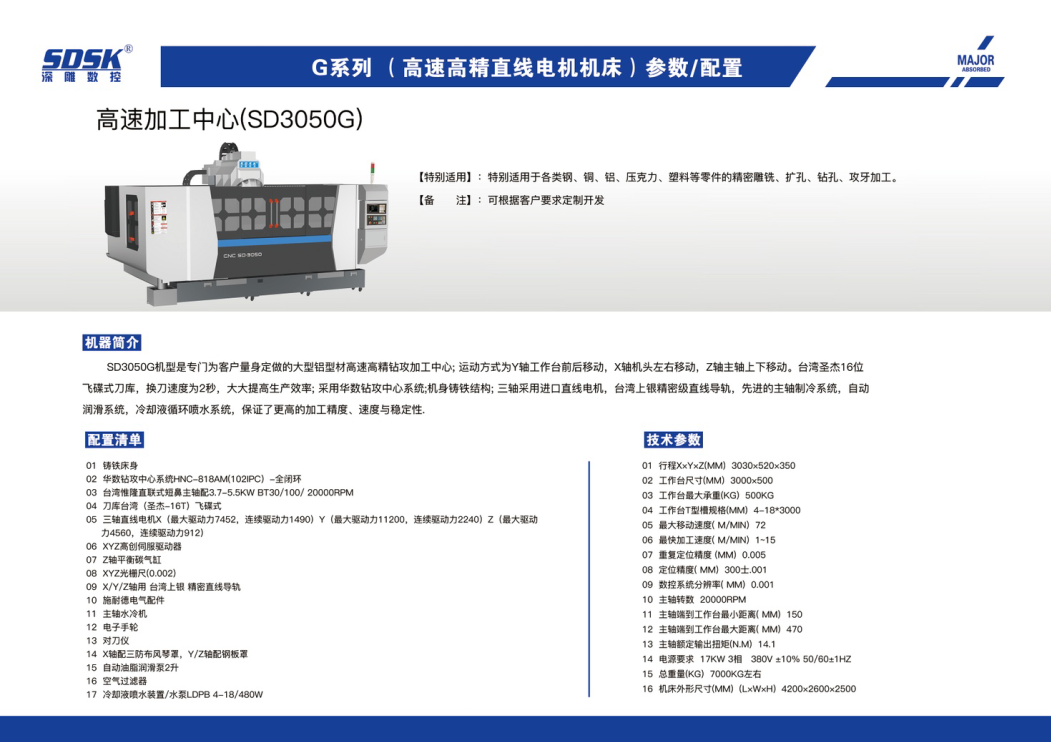

(Similar in appearance, subject to actual product)
&Nbsp< Br/>
2、 Main Configuration List of the Machine: (Unit: mm)
Number
Regulations; Grid; Speak; bright
quantity
1.
Cast iron bed body
1 set
2.
Huashu Drilling Center System HNC-818AM (102ipc) - Fully Closed Loop
1 set
3.
Taiwan Weilong Direct Connection Short Nose Spindle with 3.7-5.5KW; BT30/100/20000rpm
1 set
4.
Knife Library Taiwan (Shengjie 16T) UFO style
1 set
5.
Three axis linear motor X (maximum driving force 7452, continuous driving force 1490) Y (maximum driving force 11200, continuous driving force 2240) Z (maximum driving force 4560, continuous driving force 912)
1 set each
6.
XYZ high-tech servo driver
1 set each
7.
Z-axis balanced carbon cylinder
1 set
8.
XYZ grating ruler (0.002)
1 set each
9.
Use Taiwan Shangyin for X/Y/Z axis; Precision linear guide rail
1 set each
10.
Schneider Electric Accessories
1 batch
11.
Spindle water cooler
1 unit
12.
Electronic handwheel
1 set
13.
Knife alignment instrument
1 unit
14.
X-axis with three proof cloth organ cover, Y/Z-axis with steel plate cover
1 set each
15.
Automatic grease lubrication pump 2 liters
1 set
16.
air filter
2 sets
17.
Cooling liquid spray device/water pump LDPB 4-18/480W
1 set
&Nbsp< Br/>
3、 Technical specification parameter table:
Journey X× Y× Z (mm)
3030× 520× three hundred and fifty
Workbench size (mm)
3000× five hundred
Maximum load capacity of workbench (kg)
500KG
Specification of T-shaped groove on workbench (mm)
4-18 * 3000
Maximum movement speed (m/min)
seventy-two
Fastest processing speed (m/min)
1-15
Repetitive positioning accuracy; (mm)
zero point zero zero five
Positioning accuracy (mm)
300 ± 0.001;
CNC system resolution (mm)
zero point zero zero one
Spindle rotation speed
20000rpm
Minimum distance from spindle end to workbench (mm)
one hundred and fifty
Maximum distance from spindle end to workbench (mm)
four hundred and seventy
Rated output torque of spindle (N.m)
fourteen point one
Power requirements
17kw 3-phaseÆ 380V± 10% 50/60± 1HZ
Total weight (kg)
Around 7000kg
Machine tool dimensions (mm) (L× W× H)
4200× 2600× two thousand and five hundred
&Nbsp< Br/>
4、 Standard configuration and accessories for the host:
&Nbsp< Br/>
1. Controller
11. 1 mechanical, electrical, and operation manual
2. Spindle 20000RPM
12. Rigid tapping function
3. Automatic lubrication system
13. Electrical box heat exchanger
4. Foundation screws and pads
14. Operation Manual, Program Manual, and User Manual
5. Toolbox
15. Two BT30 blade heads (including rivets and wrenches)
6. Work lights
16. BT30 locking tool holder
7. Warning lights
17. M16 Ma Tie
8. Spindle blowing device
18. One 6-inch screwdriver
9. Transmission line
19. Lock Mouth; ER32 (4-16) 1 set
10. Semi enclosed cover
20. RS232 shield
