Profile machining center SD2550-BT40 (with fourth axis and side milling head)

Date:05-08    Belong to:New product
SDSK Deep Engraving CNC Latest CNC Machine Tool Quick Report
&Nbsp;
Machine Introduction:
SD2550-BT40 is a large-scale profile processing center specially designed for customers; Sky track type mechanism; The motion mode is to move the Y-axis workbench forward and backward, the X-axis machine head moves left and right, and the Z-axis spindle moves up and down.
Especially suitable for precision engraving, milling, cutting, expanding, punching, tapping and other processing of various types of steel, copper, aluminum, acrylic, plastic and other parts.
Additionally, a fourth rotating shaft, side milling head, and probe can be installed.

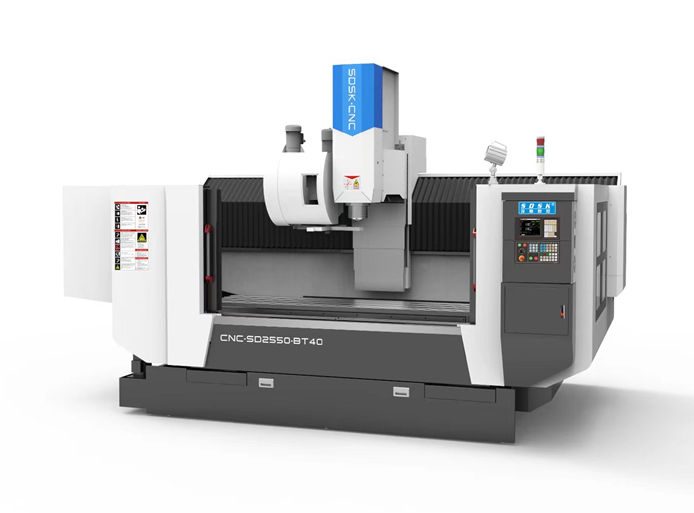

(Similar image, subject to actual product)





2、 List of Main Machine Configuration (Unit: mm)
Regulations; Grid; Speak; bright
quantity
Origin
Mitsubishi CNC system (M80)/XYZ servo motor, Z-band brake/spindle servo drive 11kw-12000
full set
Japan
Use Taiwan Shangyin/Intime for XYZ axis; Precision Ball Linear Guide (XYZ35)
full set
Taiwan
Taiwan TBI for XYZ axis; Precision grinding grade ball screw (X50, YZ40)
full set
Taiwan
Taiwan Dayue Straight Knot Long Nose Spindle BT40-150-560-12000/Circular Water Spray (Equipped with Hydraulic Knife Punching Cylinder)
1 unit
Taiwan
24T disc cutter magazine (Okada)
1 set
Taiwan
Cast iron bed and cast iron mechanical parts (HT300)
1 set
self-control
Distribution cabinet air conditioning constant temperature system (Reid)
1 set
Dongguan
Schneider Electrical Accessories (Schneider)
1 batch
Germany
Importing NSK/KOYO from Japan; P-grade angular contact paired bearings
full set
Japan
Spindle oil cooler (Reid)
1 unit
Dongguan
Electronic handwheel (Shenzhen Jingdiao)
1 set
self-control
Knife setting instrument (Shenzhen Jingdiao)
1 unit
self-control
X-axis equipped with three proof cloth organ cover (Y/Z-axis retractable steel plate cover)
1 set each
self-control
X/Y/Z axis plastic drag chain (Dingtai)
1 set each
Dongguan
Automatic lubrication oil pump (Proton)
1 set
Dongguan
Air filter (Japanese Lehman M107-A air filter)
2 sets
Zhejiang
Water spray device
1 set
self-control
Water pump 750W (Snar)
1 set
Changzhou
Air gun, water gun
1 each
Zhejiang
Machine tool accessories
1 set
Shenzhen
BT40 Knife Handle/Complete Set of Reduced Nipple (Three in One)
5
Shenzhen
Chain plate slag discharge machine
1 set
self-control


3、 Technical specification parameter table: (unit: mm)
model
SD2550-BT40
Workbench size
2500 * 500; (T-slot M16)
Spindle nose end to workbench
Maximum 850 to minimum 150
X-axis travel
two thousand five hundred and thirty
Travel Y-axis
five hundred and thirty
Z-axis travel
seven hundred
X/Y/Z fastest movement speed
X35 meters/minute

Y35 meters/minute

Z35 meters/minute
Maximum processing speed
12 meters per minute
servo system
AC servo
System resolution
zero point zero zero one
Three axis verticality
0.015mm
Whole machine positioning accuracy
&Plusmn; 0.02mm
Localization accuracy
Within 300± 0.01mm
Repetitive positioning accuracy
0.004mm
Number of spindles

Spindle servo power
11KW
Spindle servo torque
35.8N. m
Spindle speed
12000 rpm/min
UFO type tool magazine
24 bit
Knife changing method
automatic
Clamping tool handle
BT40
Knife alignment method
automatic
The countertop bears a load
2000Kg
Rated voltage
380V/50HZ
Maximum power of the entire machine
25KW
Overall weight
About 8000kg
External dimensions (length * width * height)
Approximately 4300 * 2650 * 3100


4、 Standard configuration and accessories for the host:
one
Controller
eleven
1 mechanical, electrical, and operation manual
two
Straight spindle BT40-150-560-12000 long nose
twelve
Rigid tapping function
three
Automatic lubrication system
thirteen
Electrical box air conditioning
four
Adjustable foundation cushion block
fourteen
Operation Manual, Program Manual, and User Manual
five
Toolbox
fifteen
5 BT40 blade heads (including rivets and wrenches)
six
Work lights
sixteen
BT40 locking tool holder
seven
Warning lights
seventeen
&Nbsp; M16 Ma Tie
eight
Spindle blowing device
eighteen
One 6-inch screwdriver
nine
transmission line
nineteen
Lock Mouth; ER32 (4-20)  1 set
ten
Semi enclosed cover
twenty
Shield


5、 Machine environment and hardware facility requirements;
Number
Environmental projects
Project Requirements Standards
one
Power requirements
AC380V (4P) 50-60Hz, air switch 60A, power supply voltage fluctuation range 380V± Within 10%
two
air compressor
Using screw compressor, air storage tank, three-stage filtration,≥ 0.55Mpa, flow rate≥ 100L/min
three
Vacuum pressure
&Ge; 0.6 MPa
four
Air dryer
Must have an air dryer with automatic drainage function
five
Environmental noise/vibration
&Le; 75dba
six
Ground requirements
The ground is required to be flat, stable, and the difference between the highest and lowest points should not exceed 5mm
seven
logo
